UCG Ultra

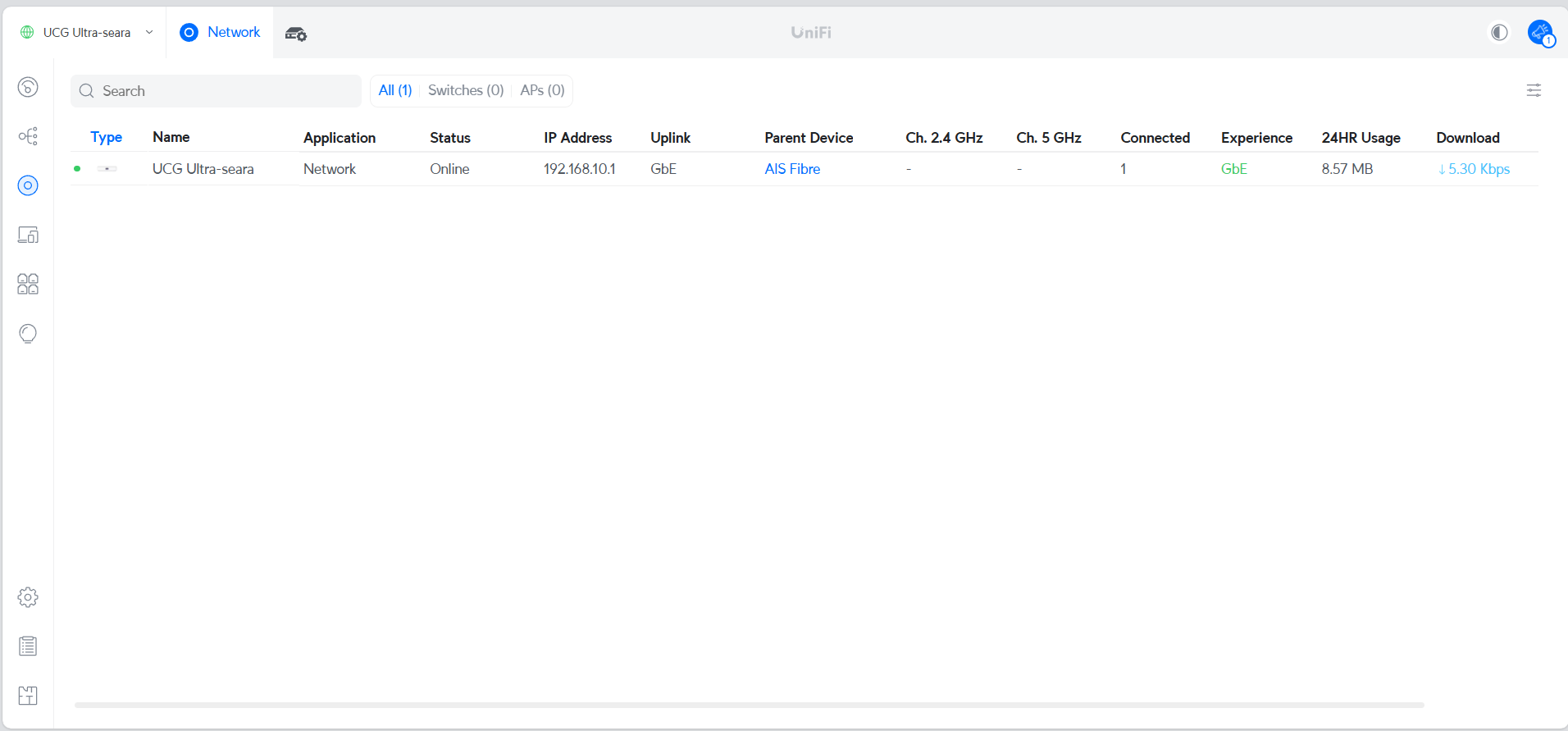

Add the UCG device to the Controller and make it ready for use.

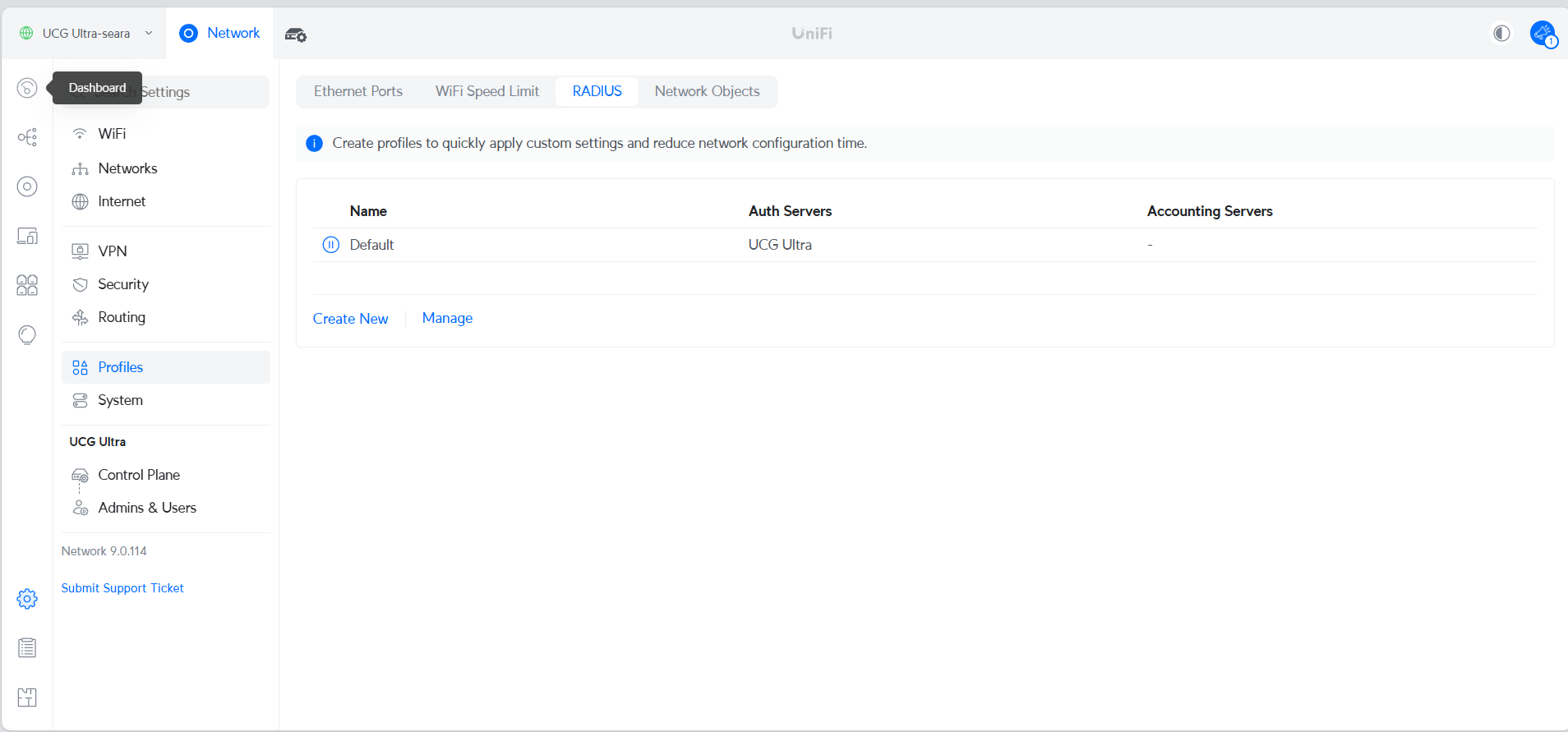

1. Go to Setting > Profile > Radius

Then click Create New.

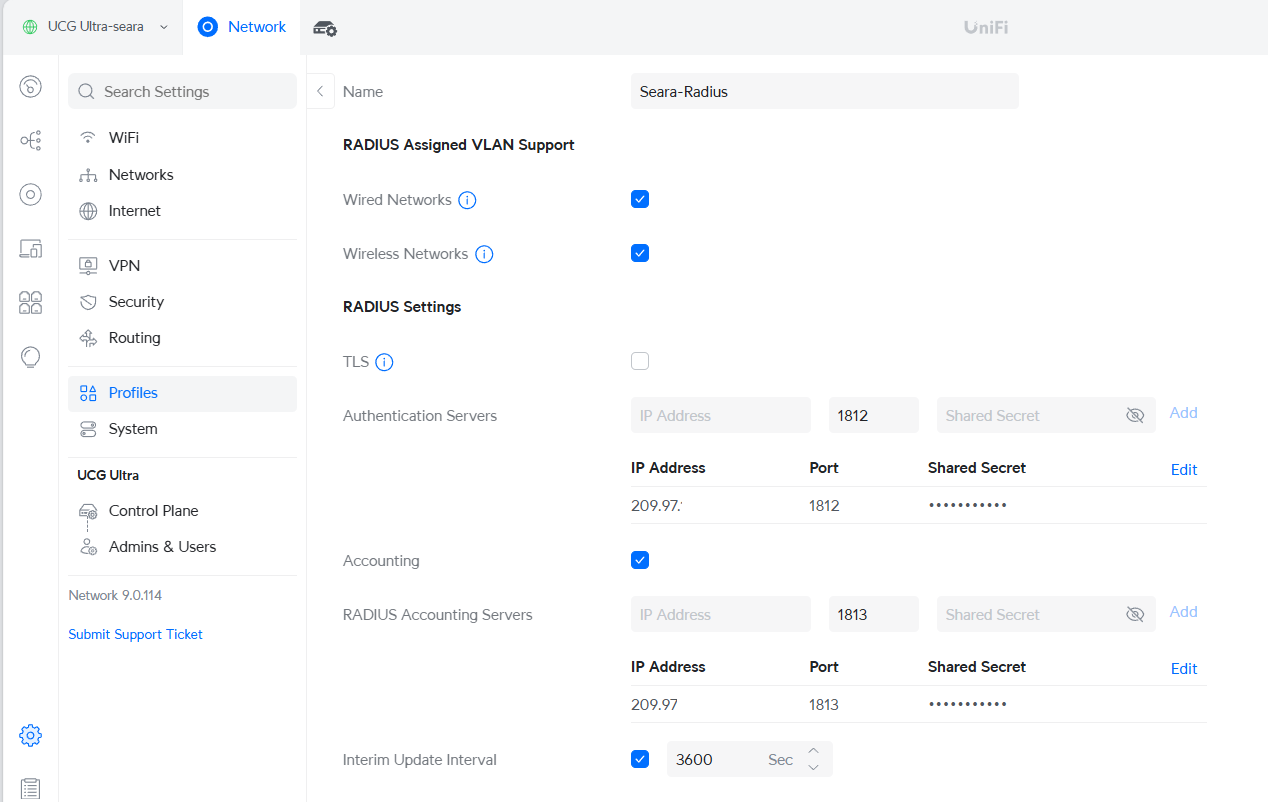

1. Configure as shown in the image.

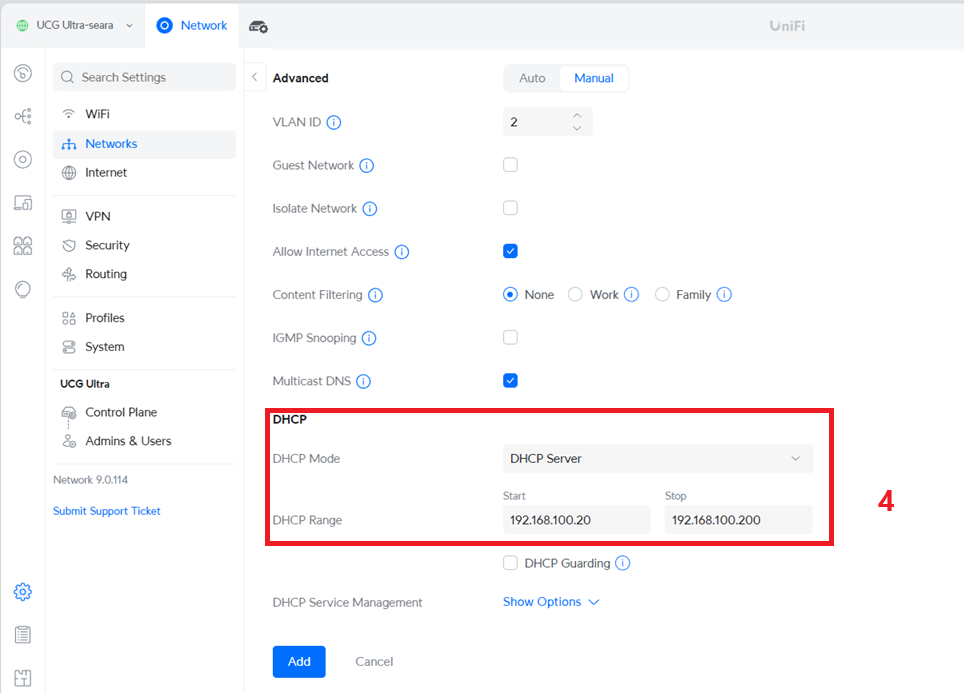

1. Go to Menu Setting > Network

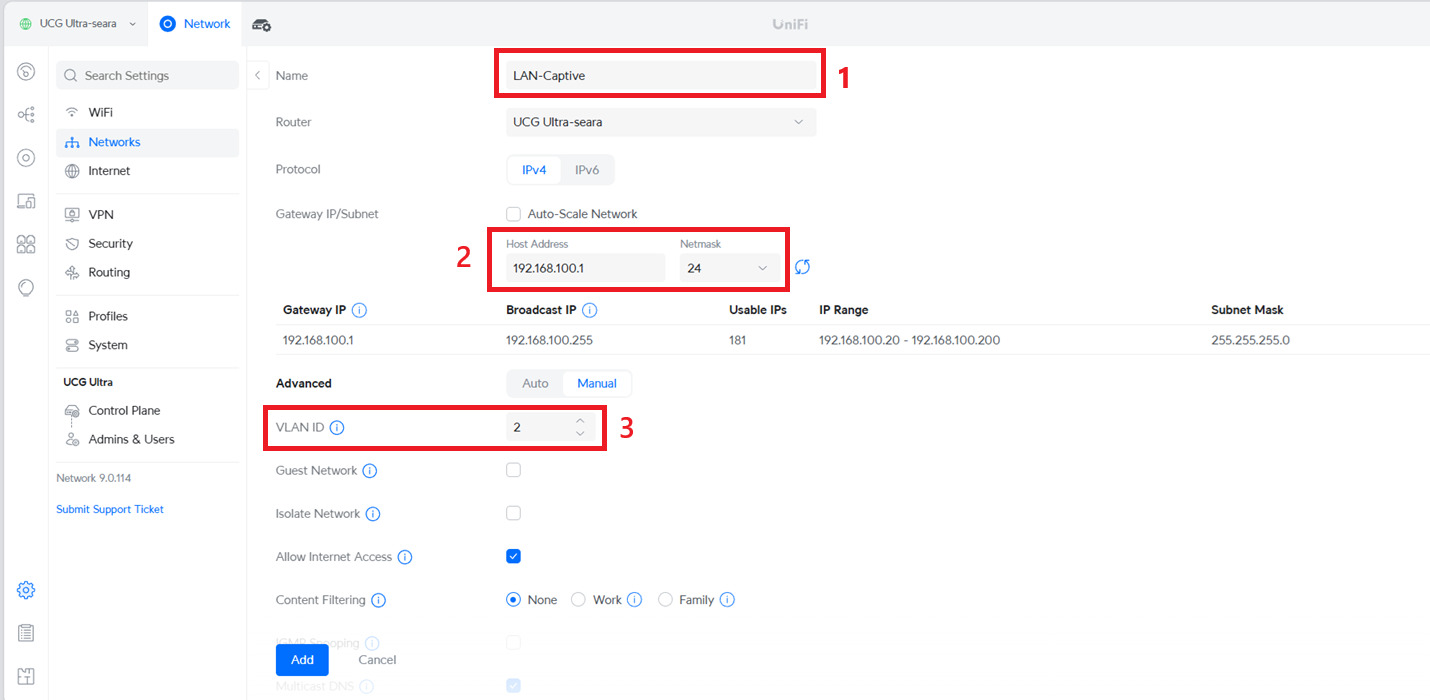

Click New Virtual Network to create a LAN network used for the Captive Portal.

1) Set the Network name.

2) Set the IP Gateway/Subnet.

3) Set the VLAN ID.

4) Set the DHCP Server Range.

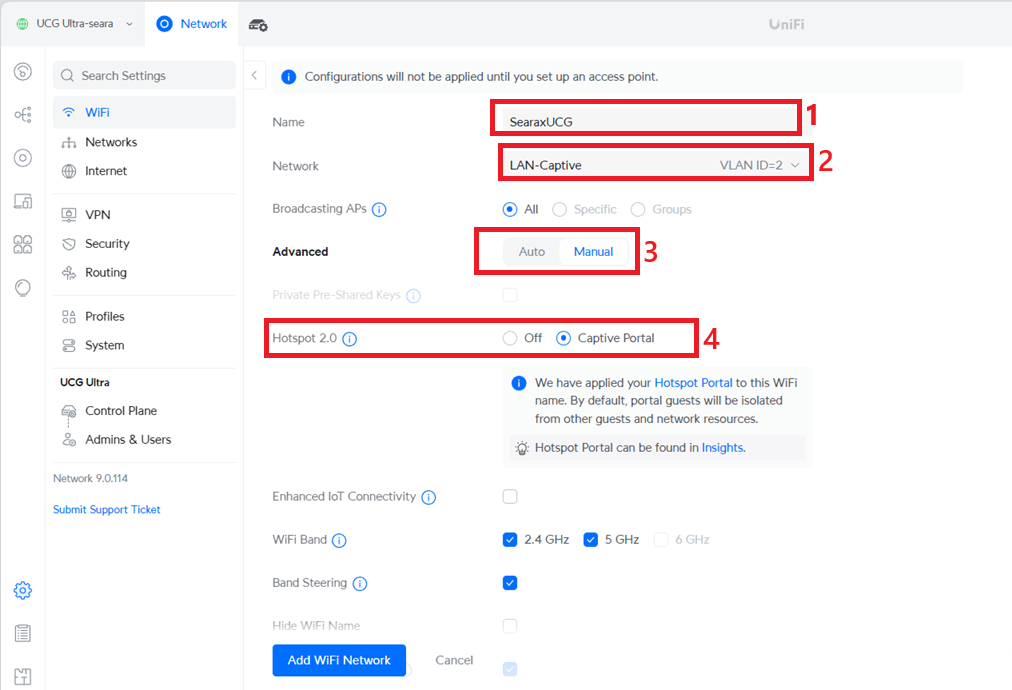

1. Go to Menu Setting WiFi

Click Create New to create a WiFi SSID.

1) Set the WiFi name.

2) Select the LAN Network.

3) Select Manual.

4) Select Captive Portal.

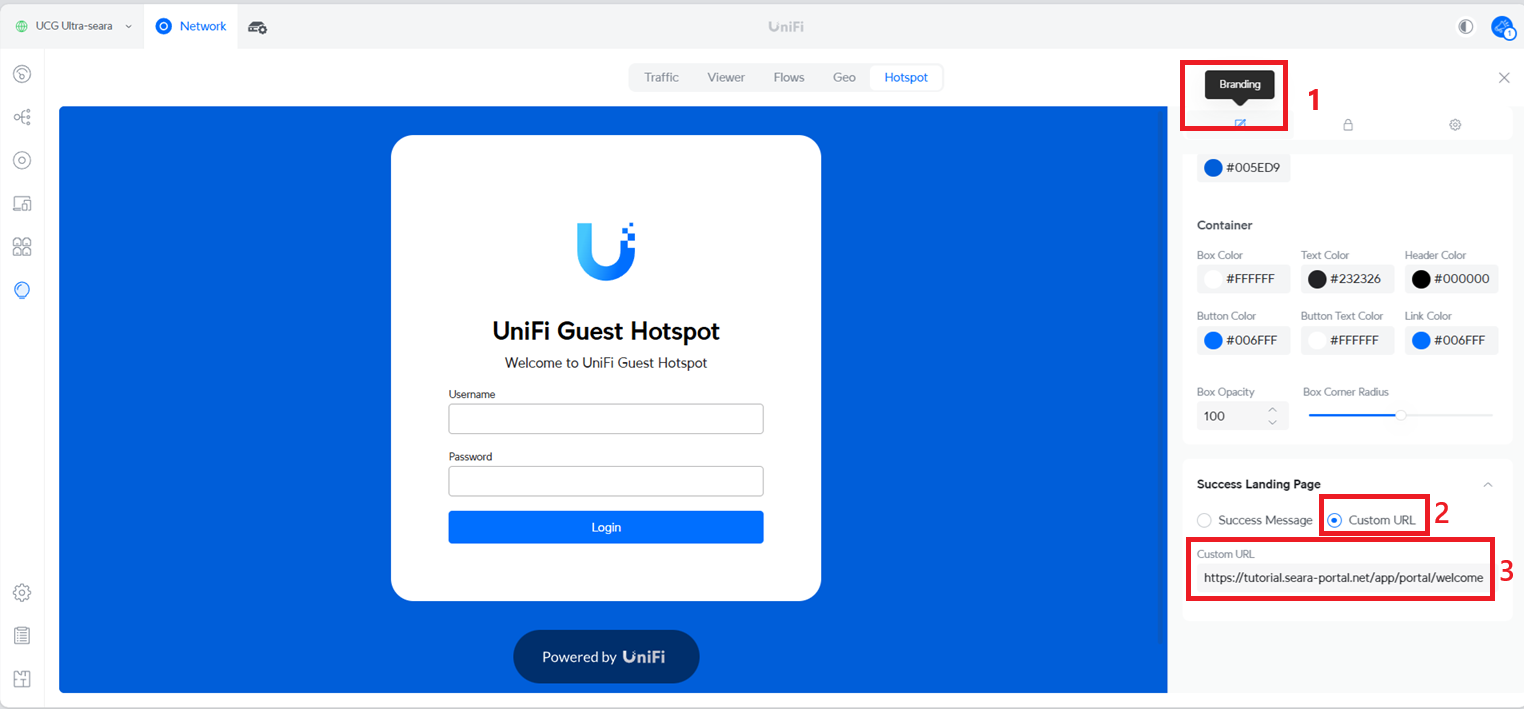

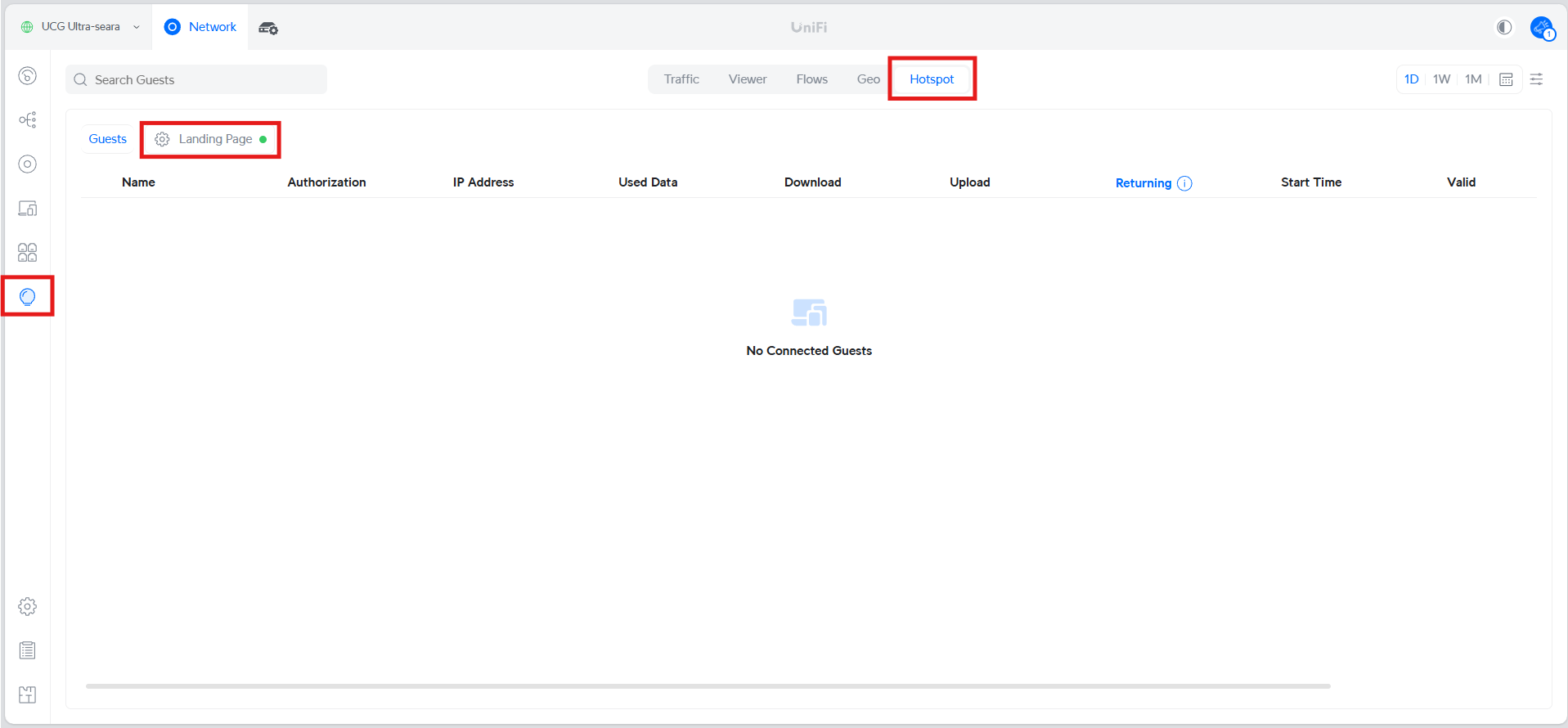

1. Go to Menu Insight > Hotspot > Landing Page

1) Go to the Branding tab.

2) For Success Landing Page, select Custom URL.

3) Enter the Custom URL: https://your Seara domain/app/portal/welcome

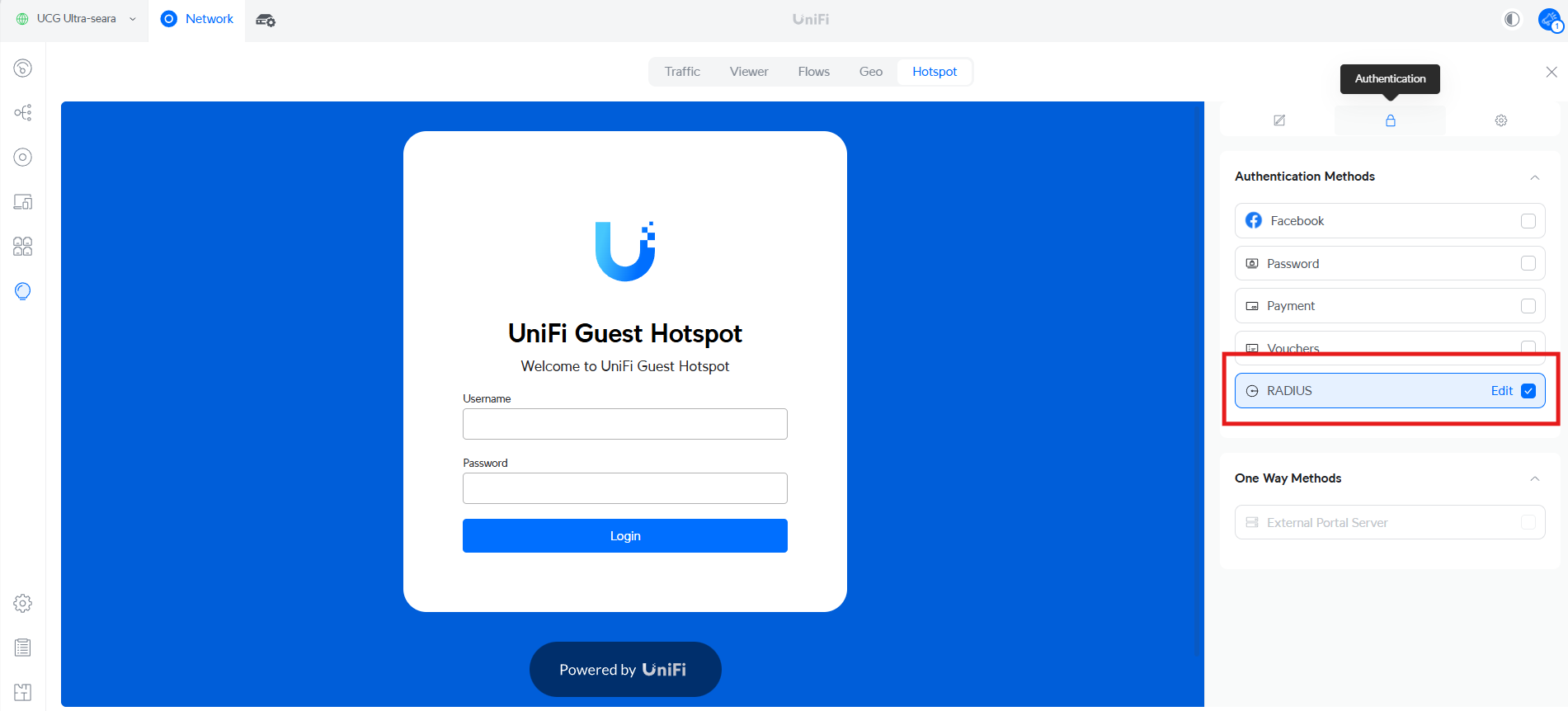

Go to the Authentication tab and select RADIUS.

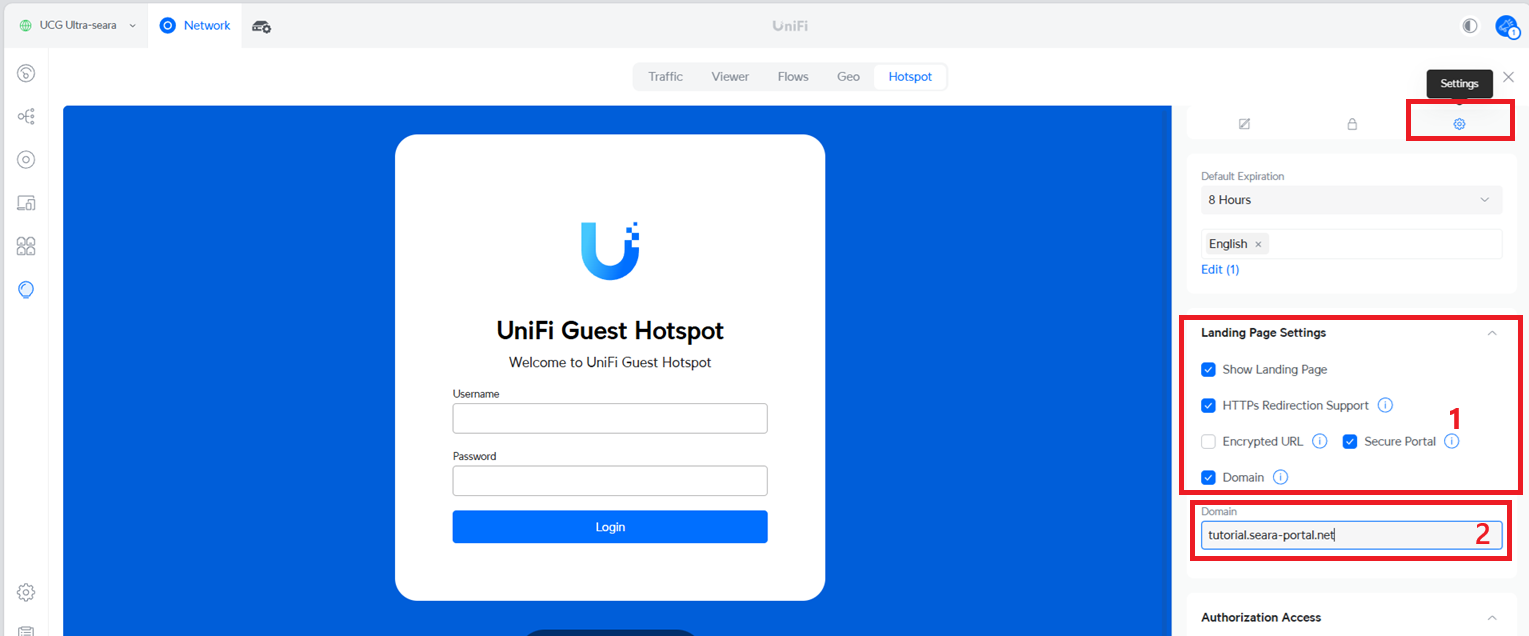

Go to the Setting tab and configure as shown.

1) Configure as shown in the image.

2) Enter your Seara domain.

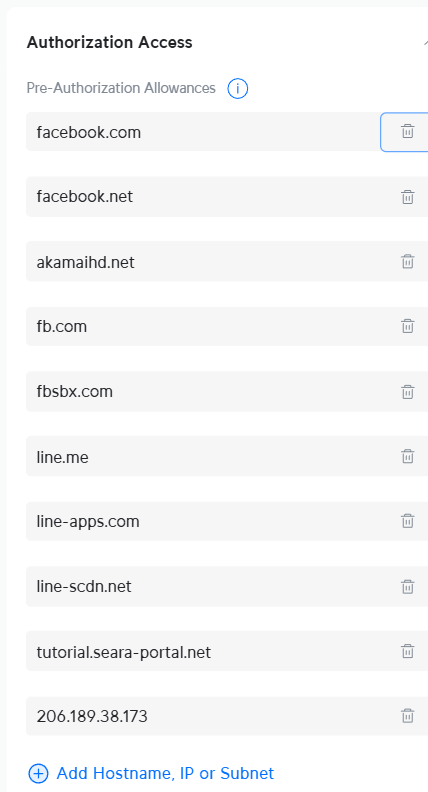

Pre-Authorization Allowances — configure as shown.

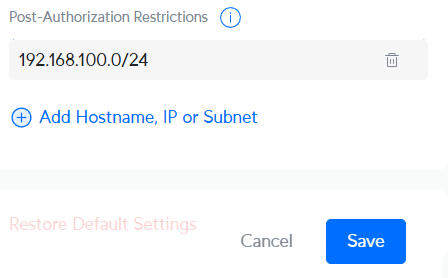

Post-Authorization Restrictions — enter the LAN Network.
