Peplink InControl

Peplink InControl is a cloud-based network device management system. Network administrators can view status, control, and configure devices centrally through a web interface or app.

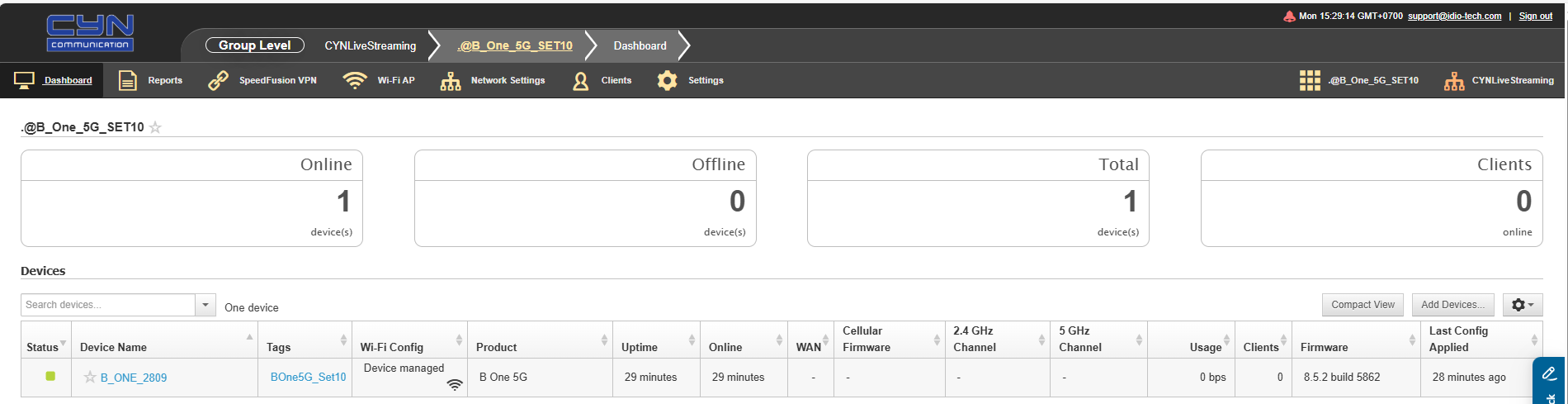

First, add the device to the cloud

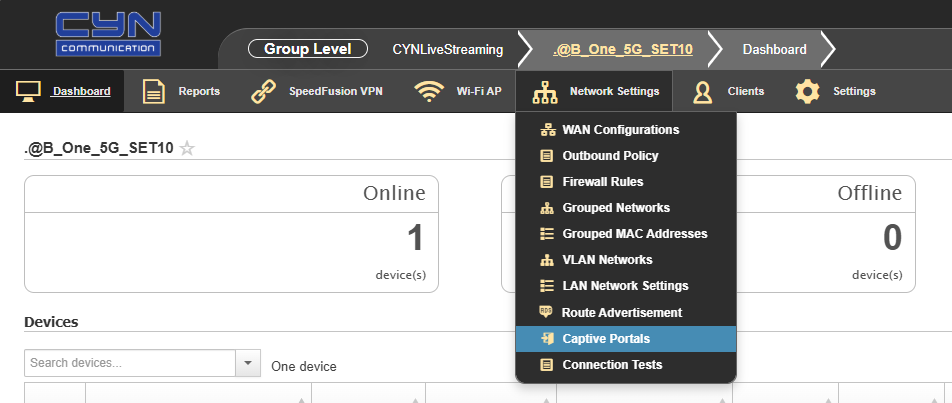

Go to the menu Network Setting > Captive Portals

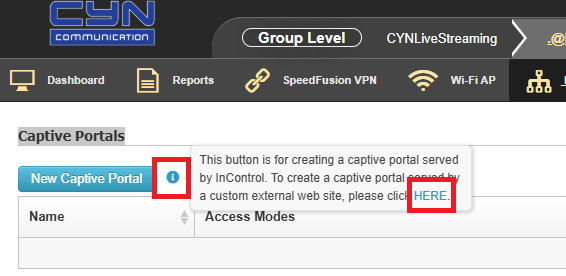

Click the "i" icon, then click HERE as shown in the image

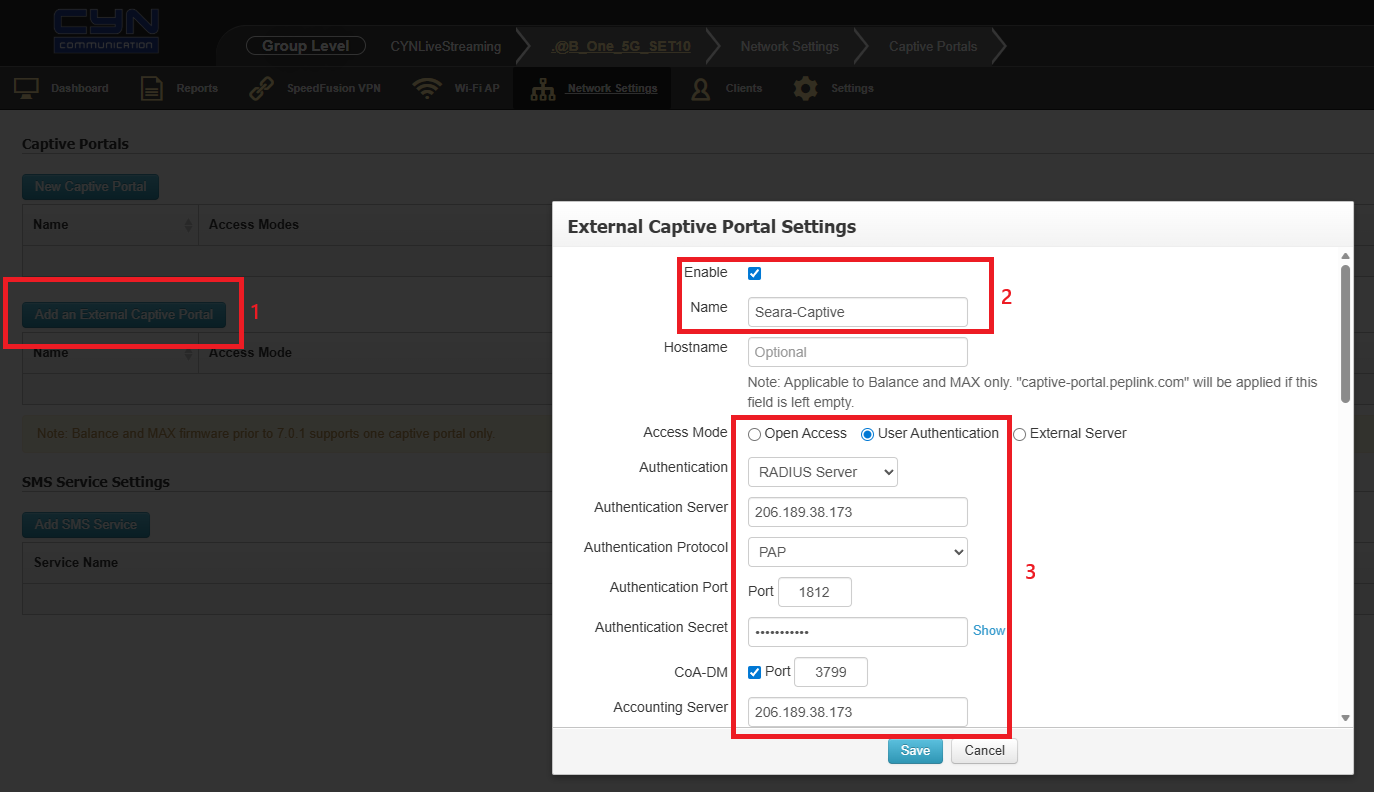

1. Click Add an External Captive Portal.

2. Click Enable and give it a name.

3. Select User Authentication.

• Authentication: select Radius Server

• Authentication Server: enter the RADIUS Server IP

• Authentication Protocol: select PAP

• Authentication Port: 1812

• Authentication Secret: enter the RADIUS Server secret key

• CoA-DM: port 3799

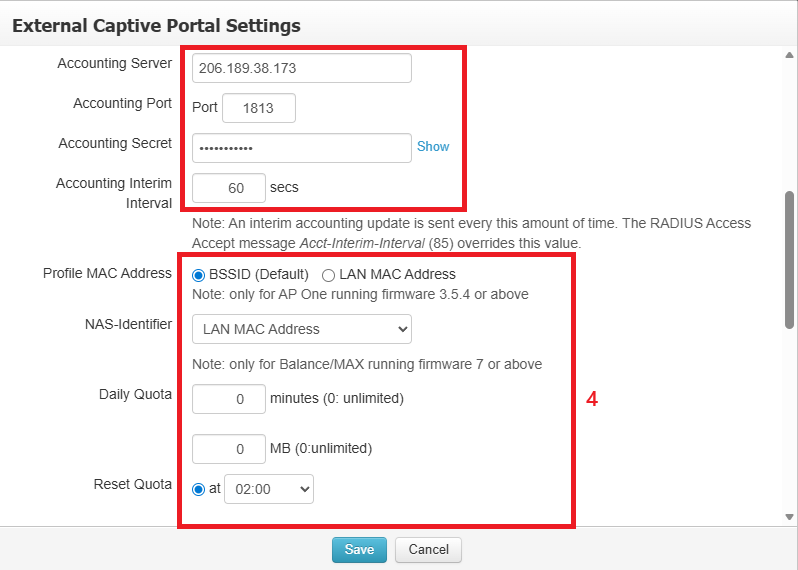

Scroll down

• Accounting Server: enter the RADIUS Server IP

• Accounting Port: 1813

• Accounting Secret: enter the RADIUS Server secret key

• Accounting Interim Interval: 60 sec

1. Configure as shown in the image.

Scroll down

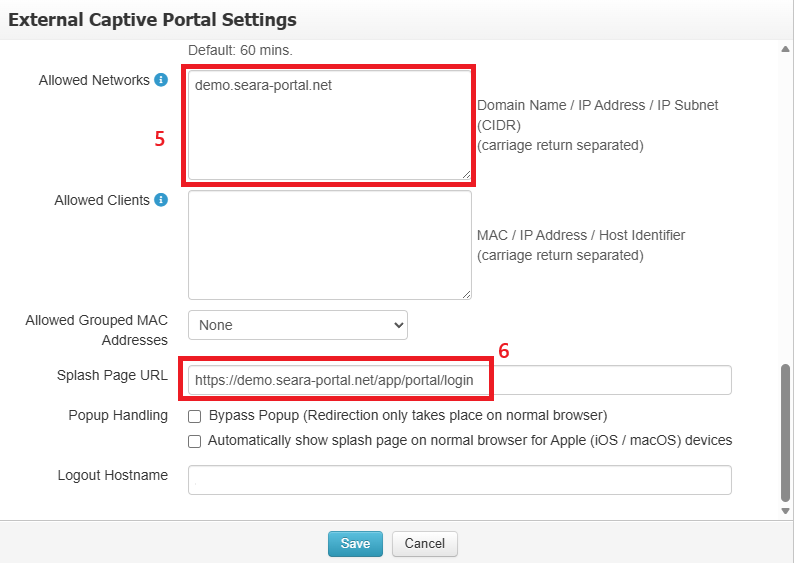

1. Allowed Networks: enter the Seara domain you received in the email

2. Splash Page URL: https://your-seara-domain/app/portal/login

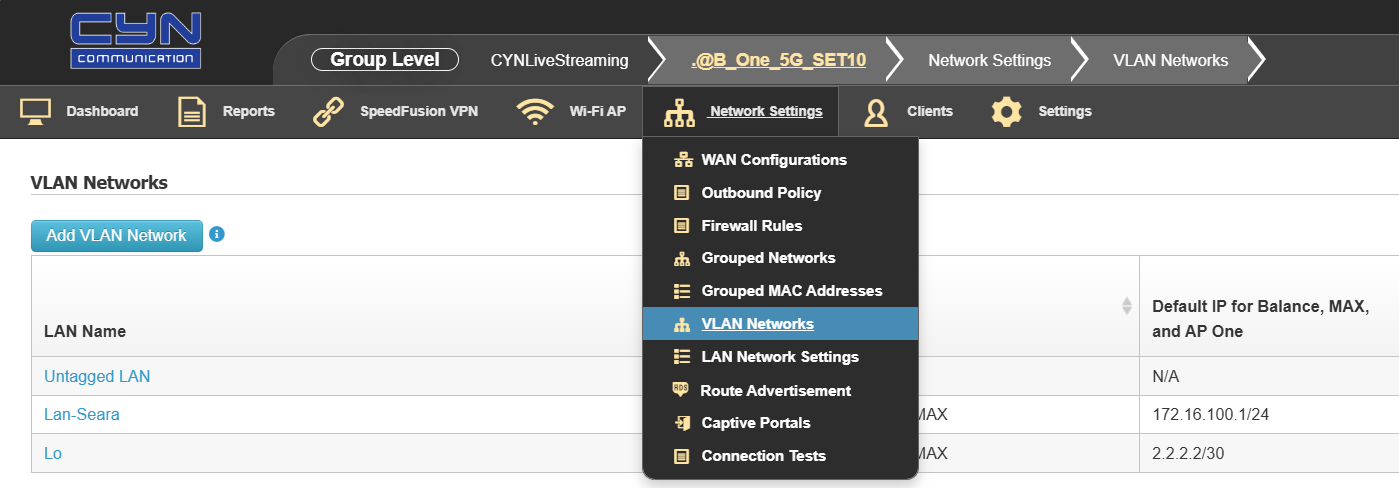

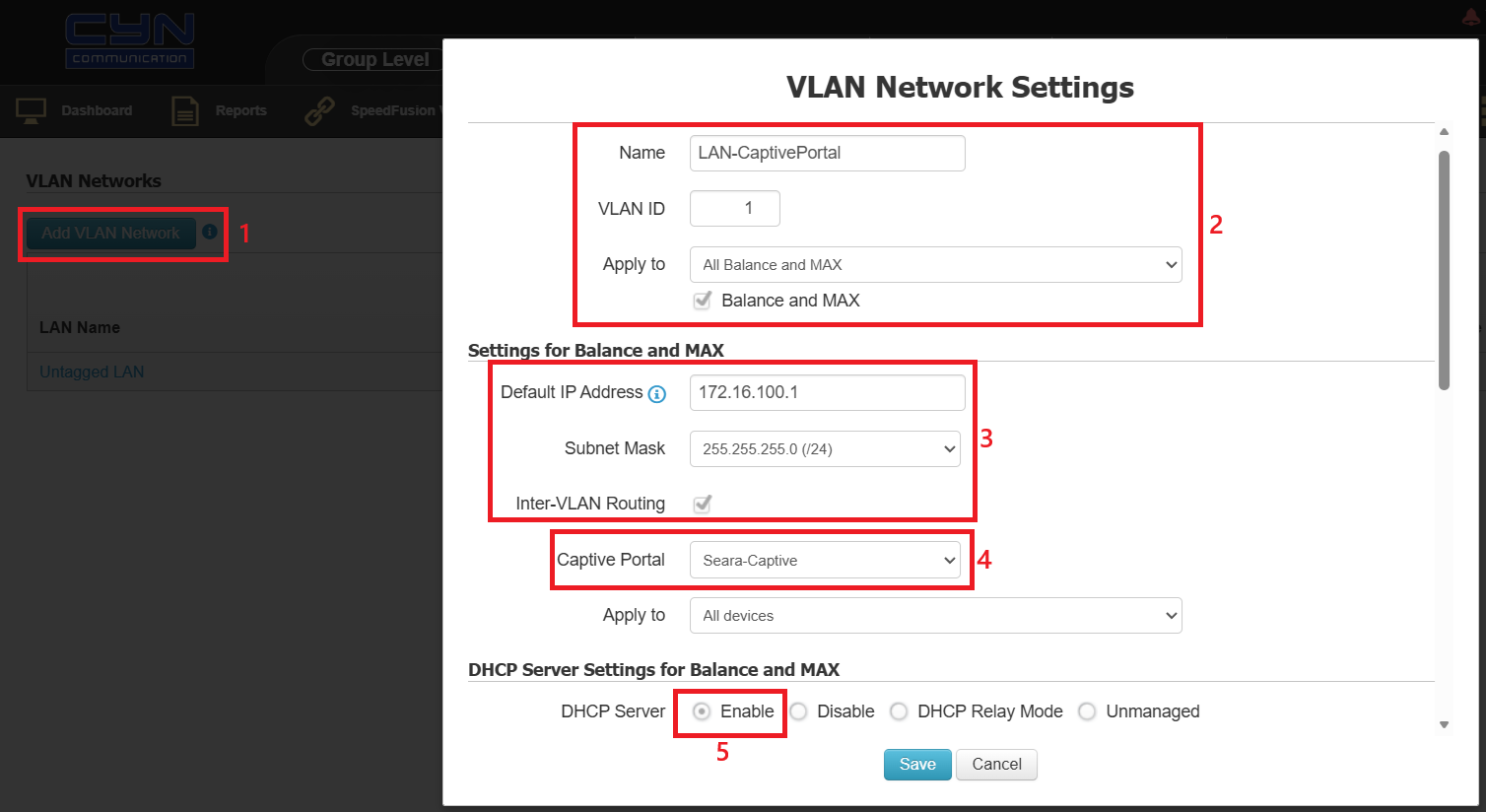

Go to the menu Network Setting > VLAN Networks

VLAN Network Setting

1. Click Add VLAN Network.

2. Configure the details as shown in the image.

• Enter a LAN interface name

• Enter the VLAN Number

• Select ALL Balance MAX

1. Configure the details as shown in the image.

• Enter the LAN IP Address

• Enter the LAN Subnet Mask

• Enable Inter-VLAN-Routing

1. Select the Captive Portal created in the previous step.

2. Enable the DHCP Server.

Scroll down

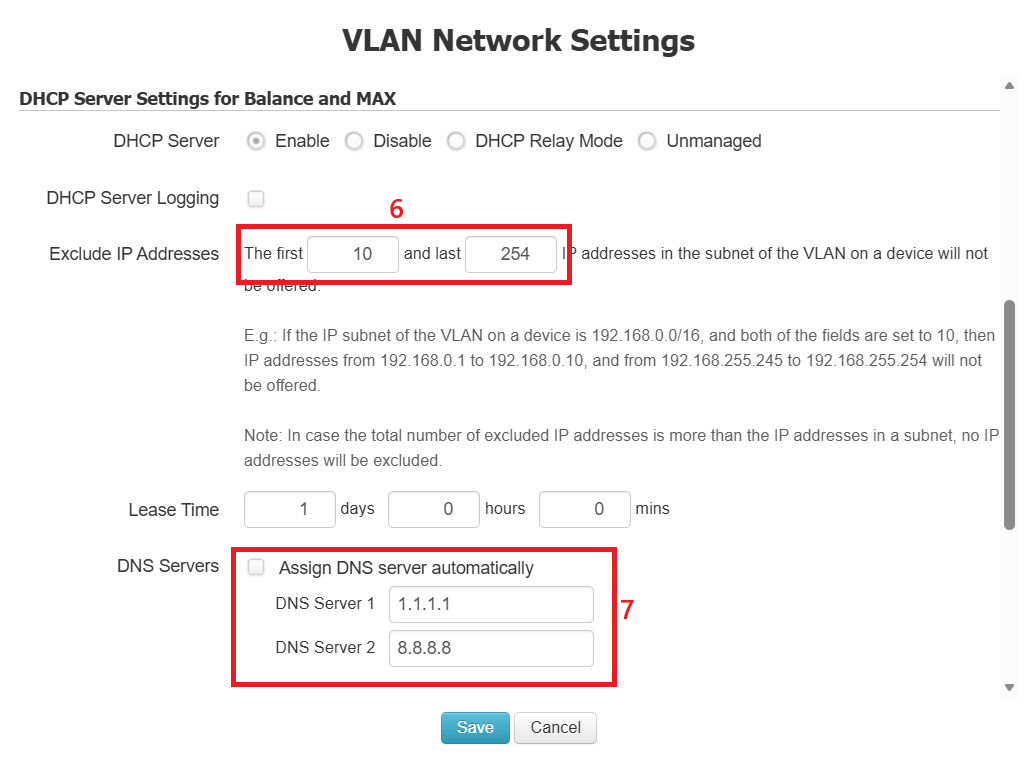

1. Choose the IP range to hand out to clients.

2. Configure the DNS Server to hand out to clients.

Add ip virtual for verify cert

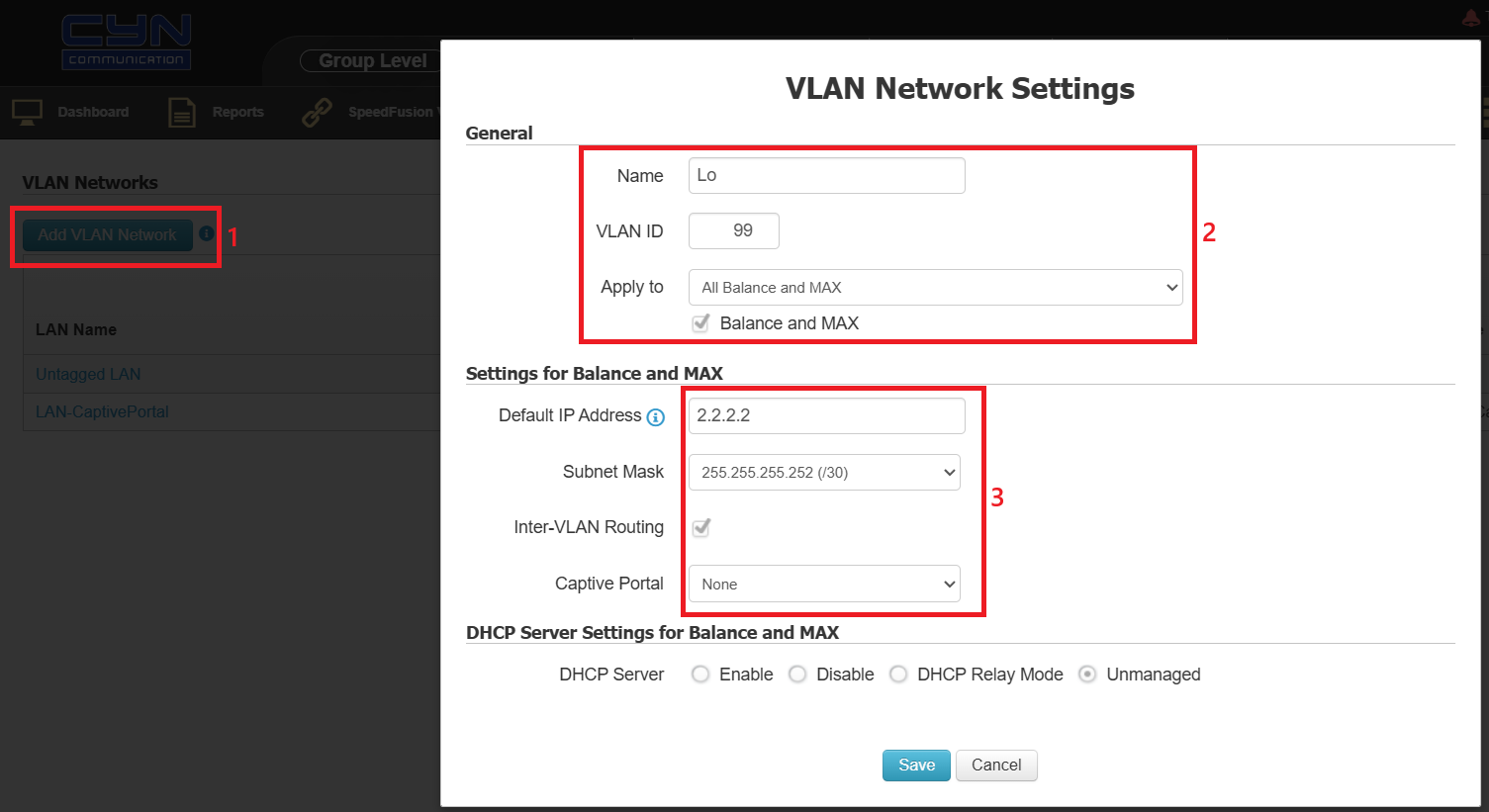

1. Click Add VLAN Network.

2. Configure the details exactly as shown in the image.

3. Configure the details exactly as shown in the image.

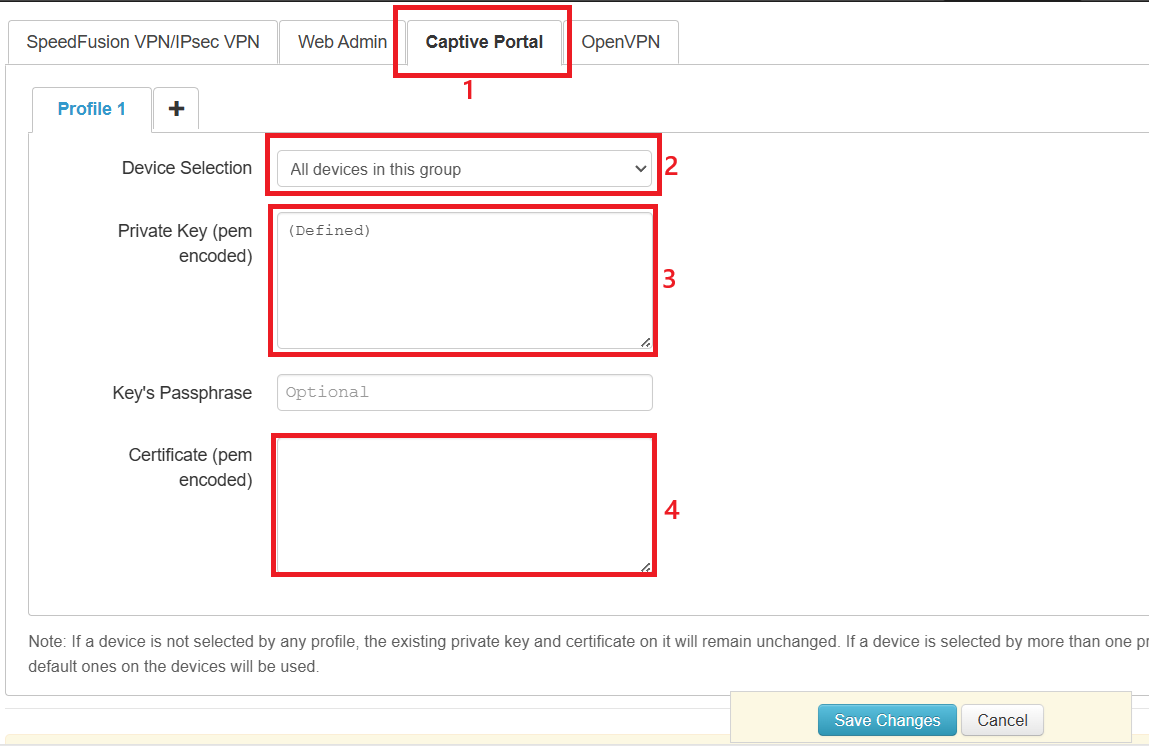

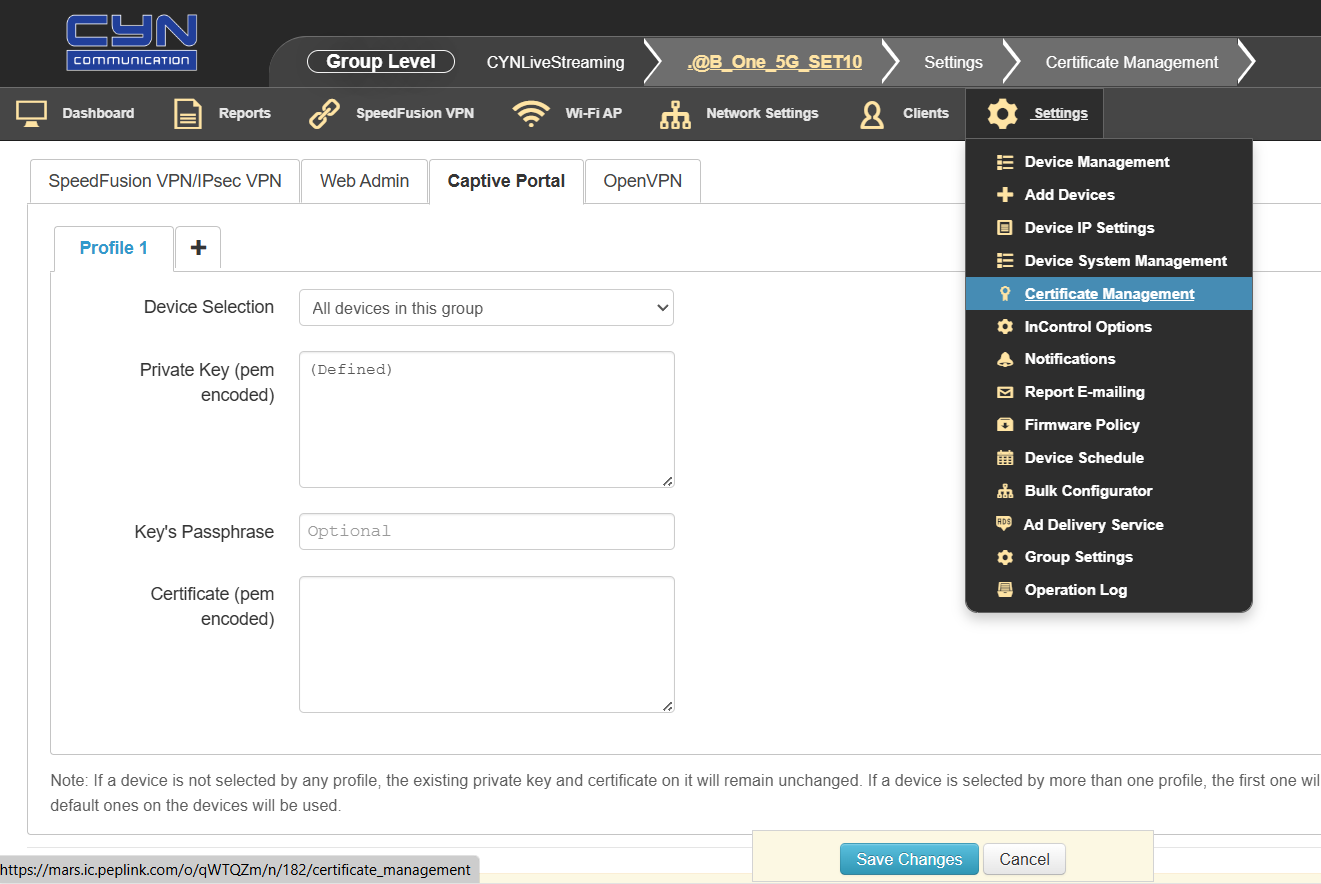

Go to the menu Settings > Certificate Management

1. Select the Captive Portal tab.

2. Configure as shown in the image.

3. Enter the Public Key from the .key file.

4. Enter the Public Key from the .crt or .cert file.

Add NAS ID

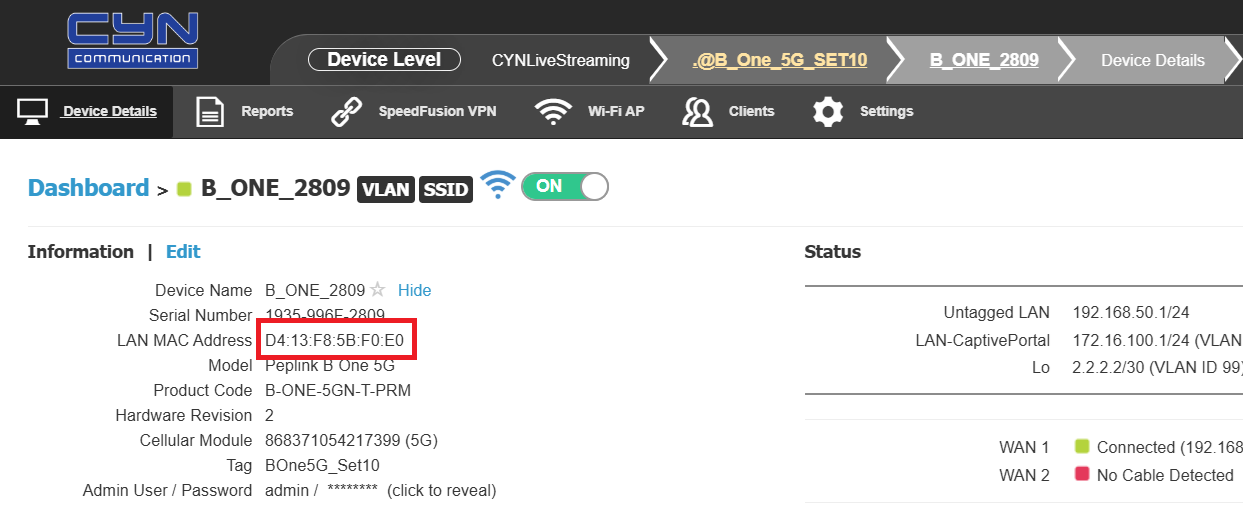

Copy the MAC address of the LAN interface and paste it on the Seara web UI.

How to add a NAS ID on the Seara web UI

1. Go to the Seara domain link you received in the email, for example https://demo.seara-portal.net.

2. Add Location: go to the Site menu in Seara and add a location. See Add Location.

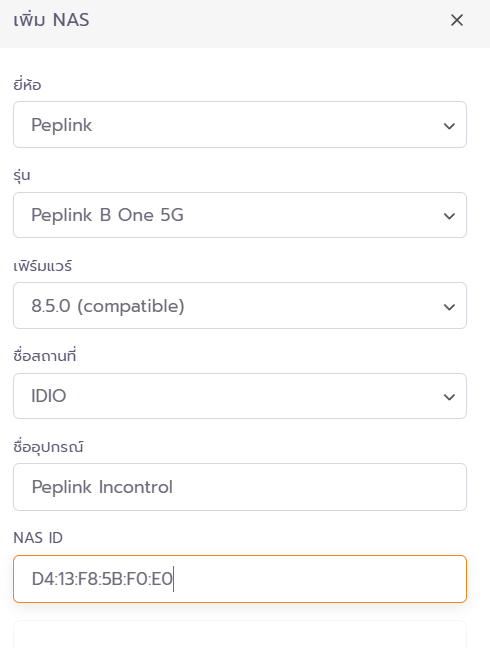

3. Add Device: go to the Site menu in Seara, click Add NAS, then follow the steps shown in the image.

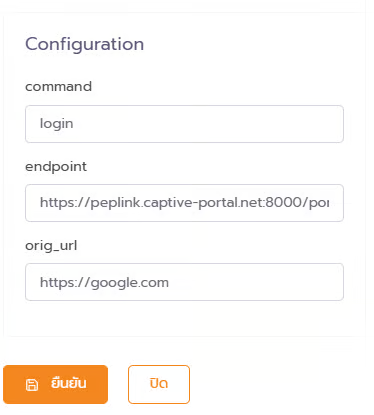

Endpoint configuration on Seara

endpoint:https://peplink.captive-portal.net:8000/portal.cgi

orig_url:https://google.com (or any other site you want to redirect to after a successful login)
