Aruba IAP
Explains the steps to configure an Aruba Instant AP to work with Seara Cloud
Log in to the Aruba Instant AP.

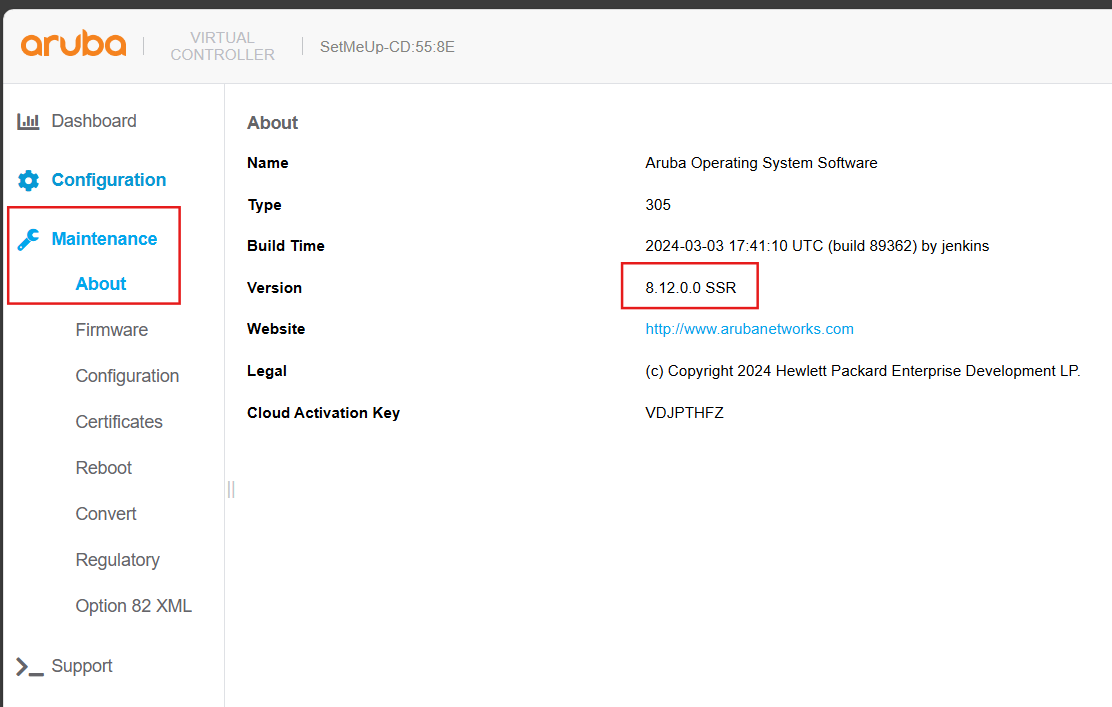

2. Check the firmware version: go to Maintenance >> About.
############## Create RADIUS and External Captive Portal ##############
3. Go to the Configuration menu.

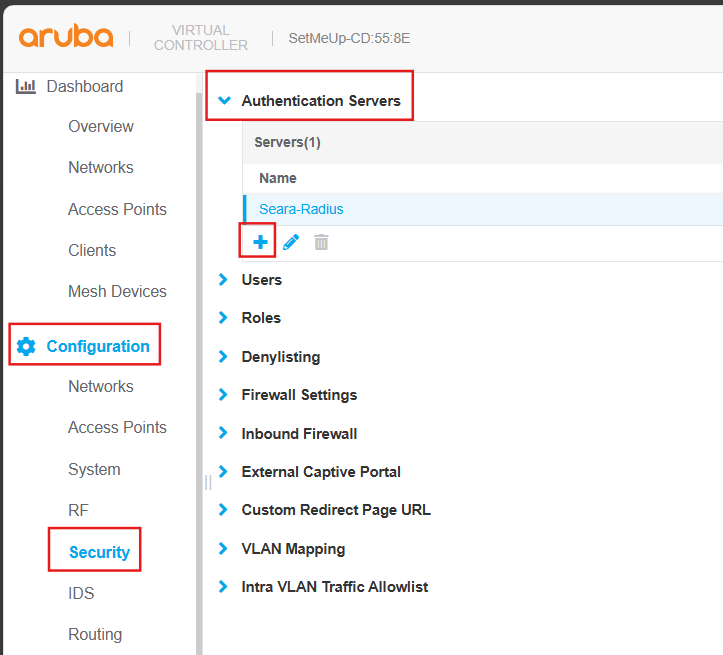

Select Security >> Authentication Servers

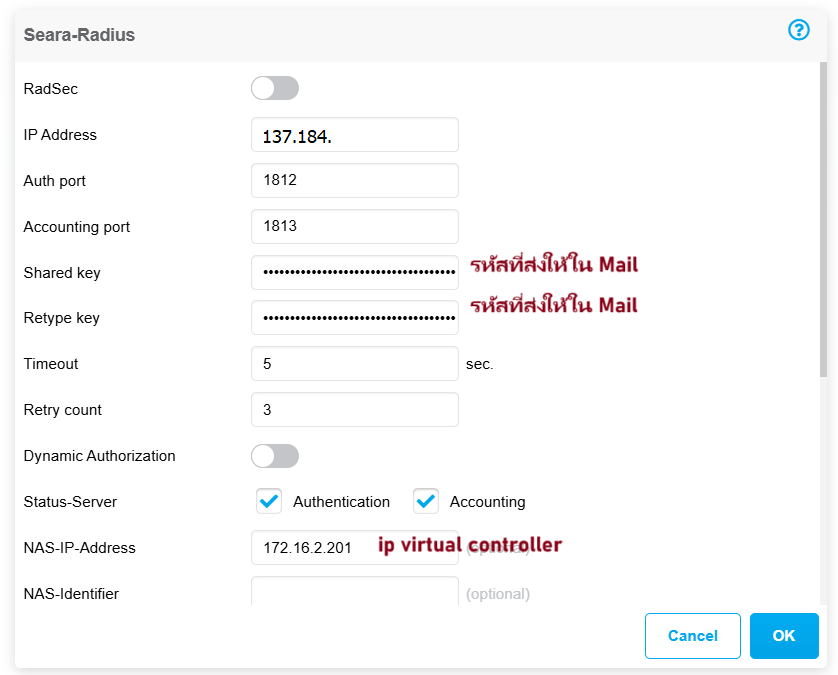

Click + to create a RADIUS SERVER profile as follows:
Go to the Configuration menu.

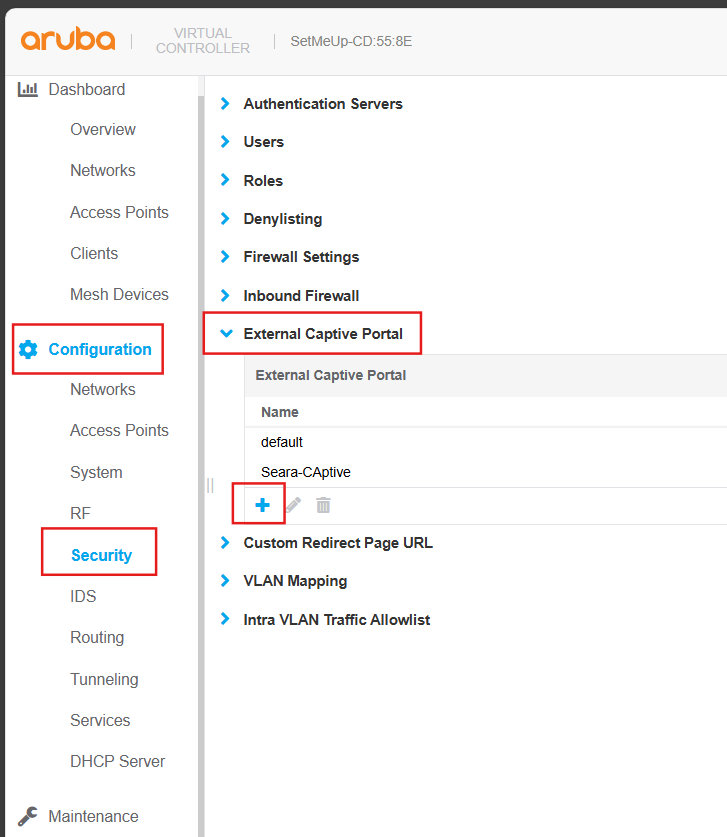

Select Security >> External Captive Portal

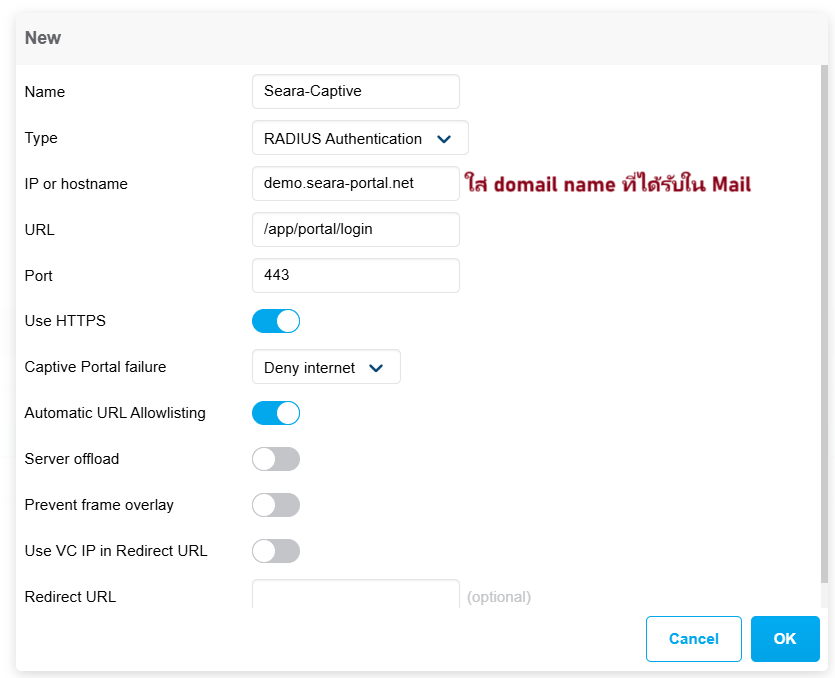

Click + and configure as shown in the image.
############## Create an SSID for Captive Portal ##############
Go to the Network menu.
.png>)
Click + and configure as follows:

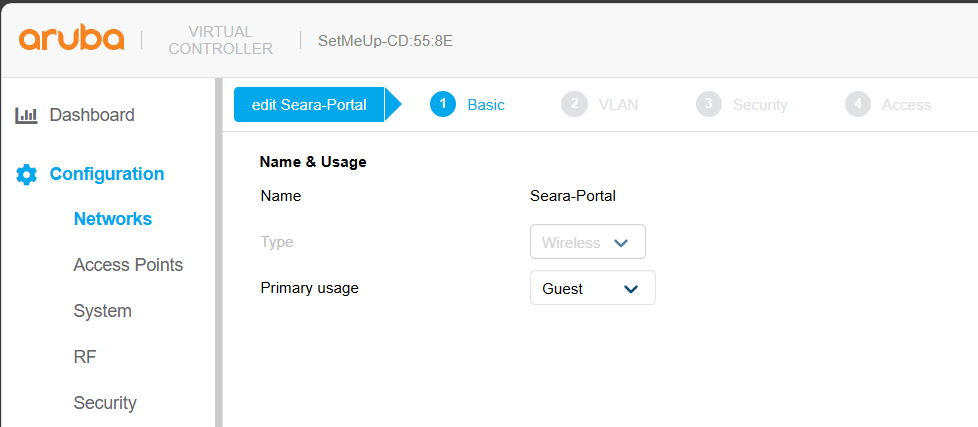

1 Basic

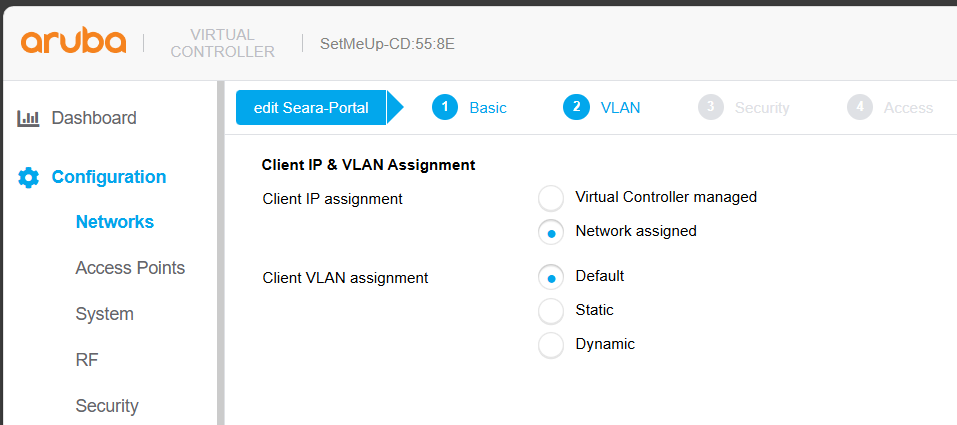

2 Vlan *The example uses the default VLAN

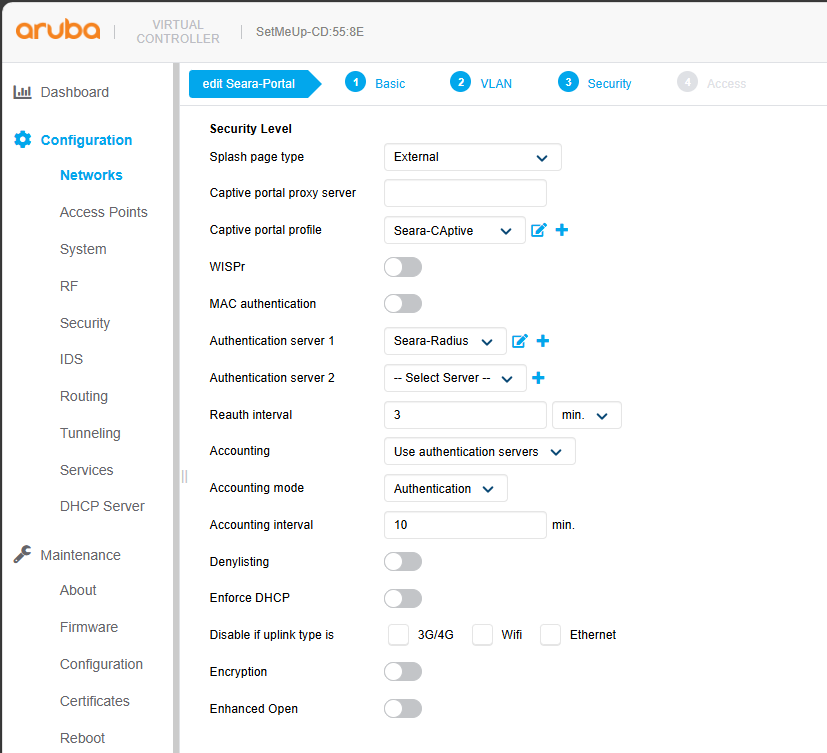

3 Security

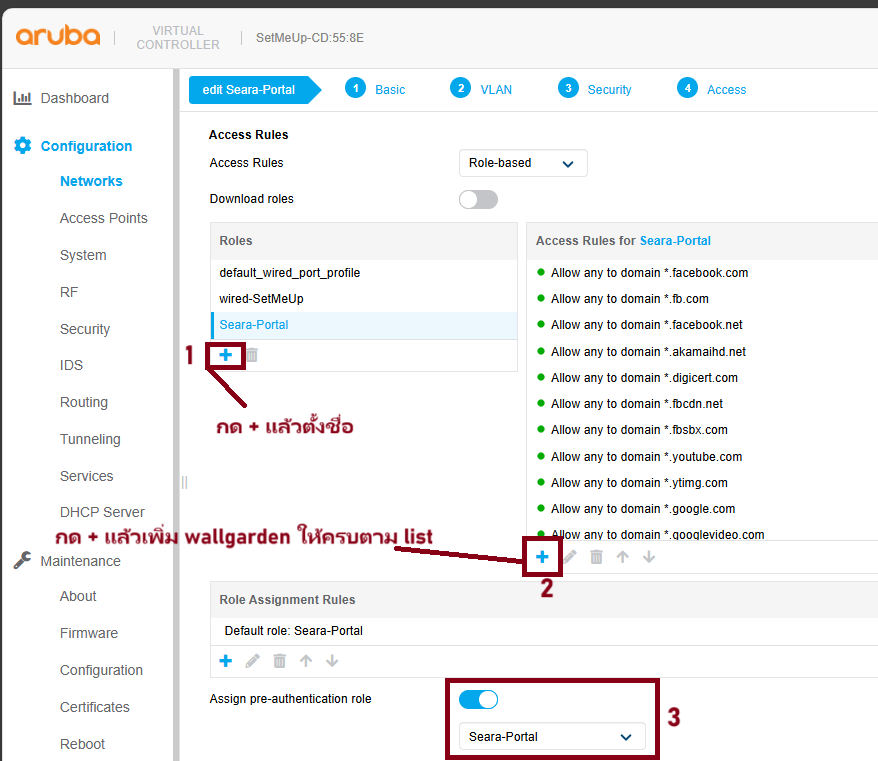

4 Access

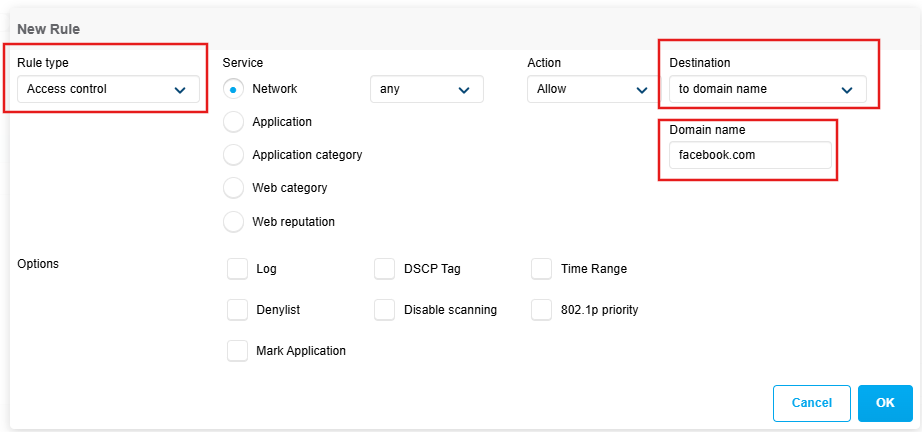

How to add a rule
Add rules in order, covering all of the following domains
Seara Cloud
*.seara-portal.net
*.akamaihd.net
*.digicert.com
Microsoft
*.msftncsi.com
Android
clients3.google.com
connectivitycheck.android.com
*.gstatic.com
*.youtube.com
*.ytimg.com
*.google.com
*.googlevideo.com
Apple
appleiphonecell.com
captive.apple.com
apple.com
itools.info
ibook.info
airport.us
*.facebook.com
*.facebook.net
*.akamaihd.net
*.digicert.com
*.fbcdn.net
*.fb.com
*.fbsbx.com
Line
*.line.me
*.line-apps.com
*.line-scdn.net
*.terms.line.me
*.d.line-scdn.net
access.line.me
static.line-scdn.net
profile.line-scdn.net
line.me
*.twitter.com
*.twimg.com
Add Rule : to all destinations as the last rule
.png>)

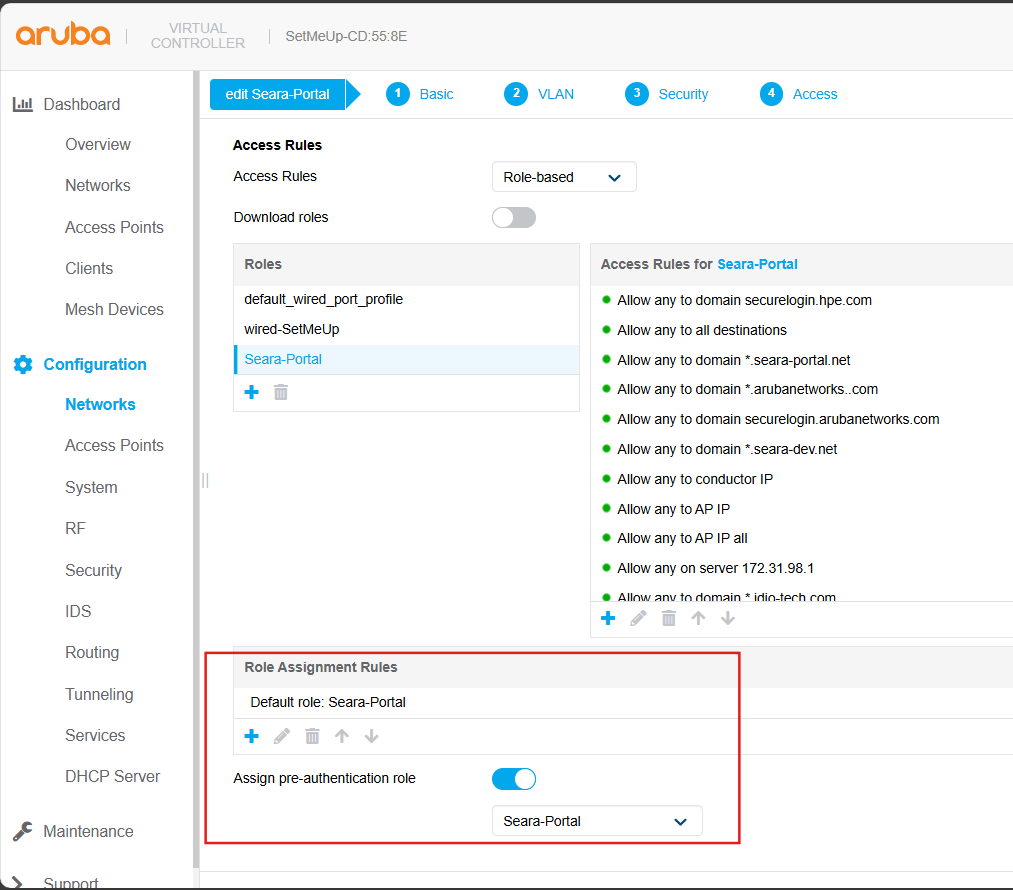

Configure the Role Assignment Rules as shown in the image
################### Success for Config In the Aruba AP ##################
Next steps
Add the device to Seara Cloud and select the device type as Aruba IAP
Create a Portal page and link it to the created SSID to test the operation
