# Altai

Explains how to configure Seara to connect with an Altai Access Point

### **How to Configure RADIUS Seara - Altai**

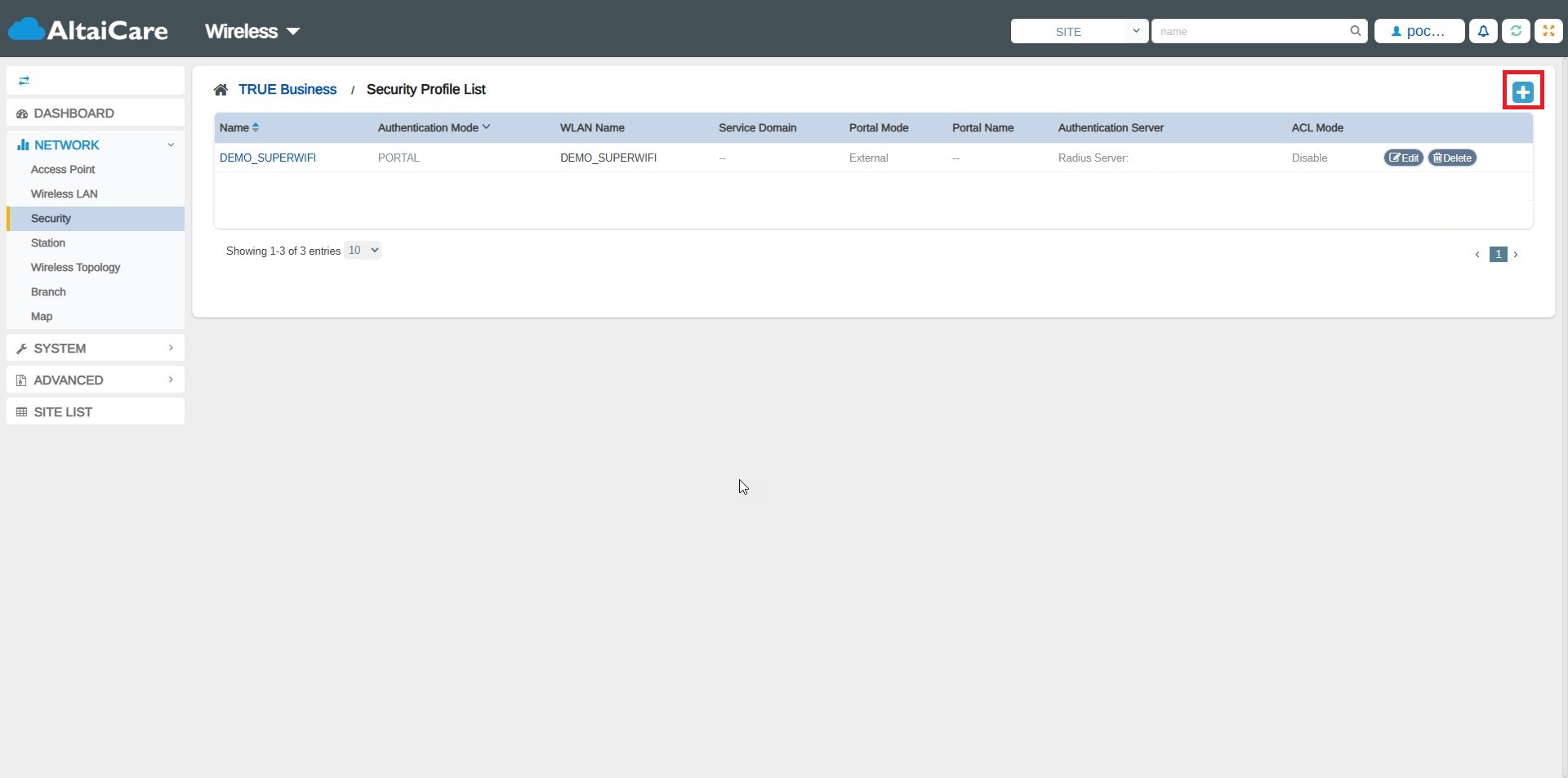

1. After adding the device, go to Network >>>> select Security and click the plus button.

<figure><img src="https://2507662344-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDBkKbWLZfasd8l3v8ndZ%2Fuploads%2Fgit-blob-f900296aa66d548efe35f0f7e2a57d5a68fa5af8%2F01.jpg?alt=media" alt=""><figcaption></figcaption></figure>

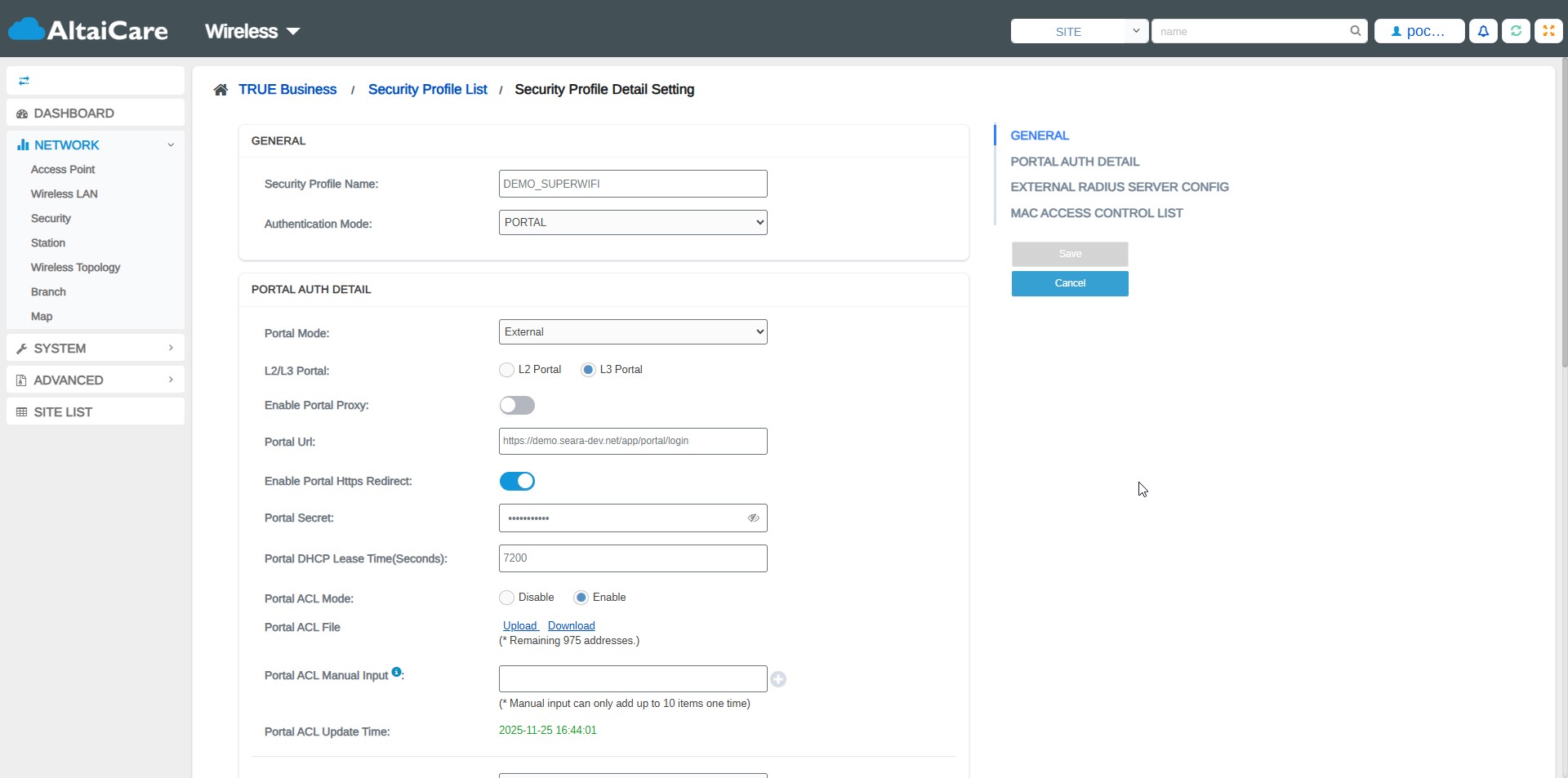

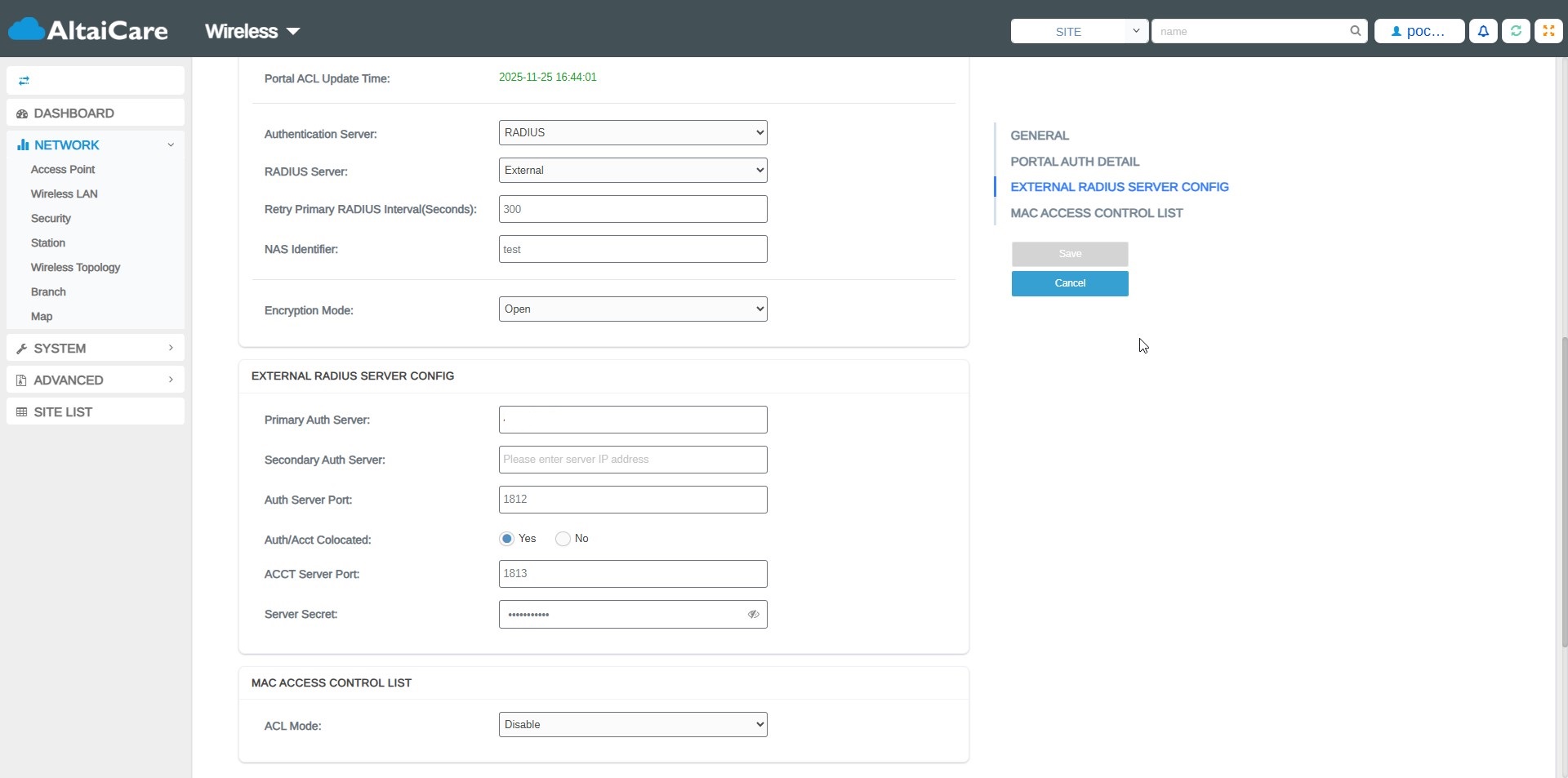

2\. External Portal Detail (information will be sent via Email). For the domain xxxx, fill in the information you received.

<figure><img src="https://2507662344-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDBkKbWLZfasd8l3v8ndZ%2Fuploads%2Fgit-blob-694f557df48b4c72f744529501391420cd44eac3%2F02.jpg?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2507662344-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDBkKbWLZfasd8l3v8ndZ%2Fuploads%2Fgit-blob-a1e37fc5b4bcc19cb20d089620f0f5c5d600b9bf%2F03.jpg?alt=media" alt=""><figcaption></figcaption></figure>

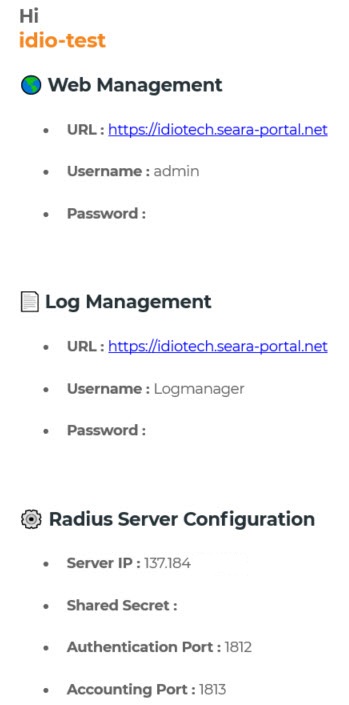

<mark style="color:red;">**Example of the Email you will receive, as shown below**</mark>

* Security Profile Name : set as desired
* Authentication Mode : PORTAL
* Portal Mode : External
* L2/L3 Portal : L3 Portal
* Portal URL : <https://demo.seara-portal.net/app/portal/login>
* Portal Secret : take from the Email
* Portal ACL Mode : Enable
* Portal ACL File : enter the Allowed Domain List
* Authentication Server : RADIUS
* RADIUS Server : External
* Retry Primary RADIUS Interval(Seconds) : 300
* Encryption Mode : Open
* Primary Auth Server : take from the Email
* Auth Server Port : 1812
* Auth/Acc Colocated : Yes
* ACCT Server Port : 1813

<figure><img src="https://2507662344-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDBkKbWLZfasd8l3v8ndZ%2Fuploads%2Fgit-blob-4e7b87e33c5dc98326871996e4b63b79a3cf1b96%2F2024-11-19_11-52-54%20(1).jpg?alt=media" alt=""><figcaption></figcaption></figure>

3\. Allowed domains

[Allowed Domain List](/appendix/allowed-domain-list.md)

\

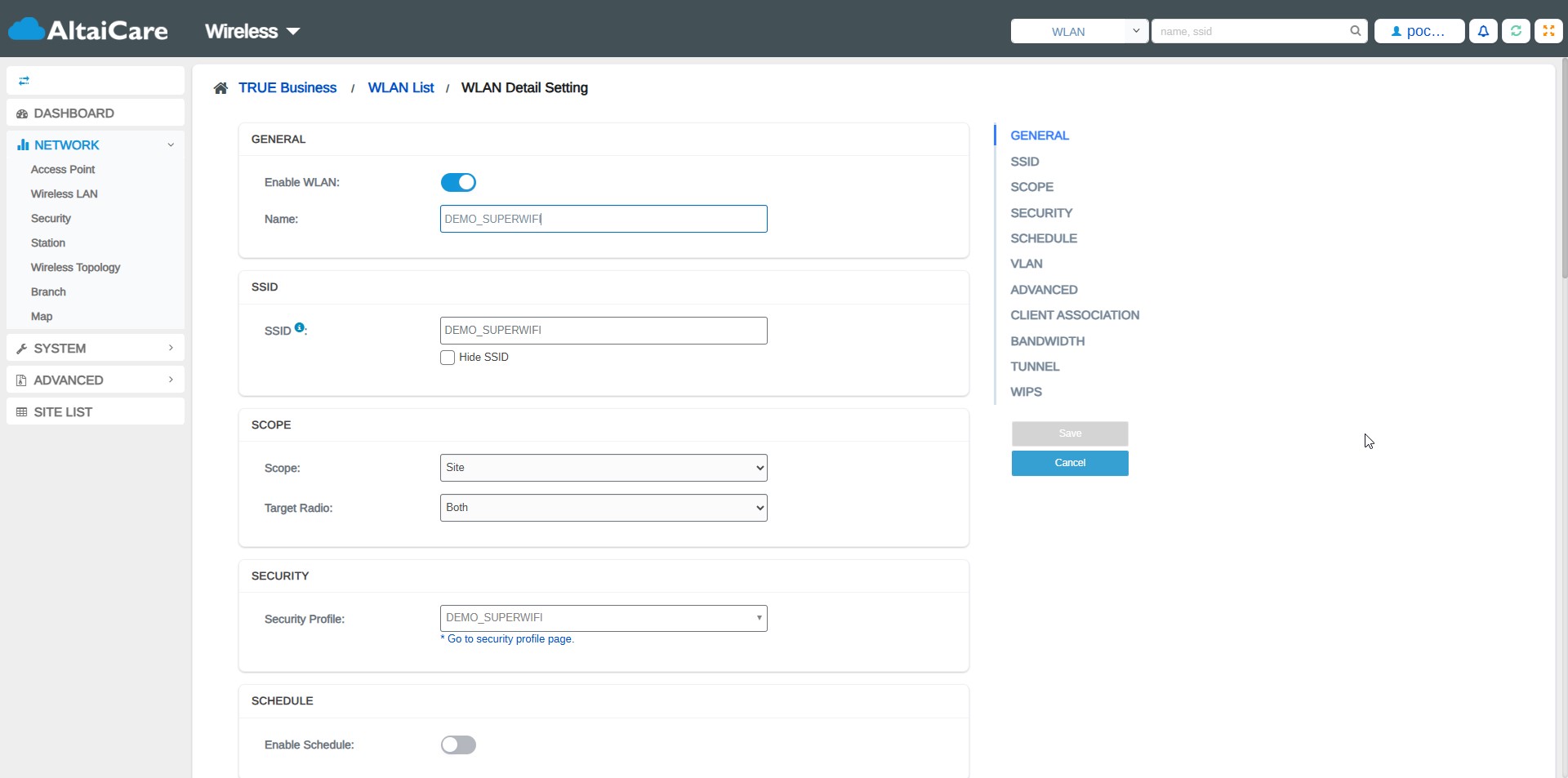

4\. Configure the Wireless LAN to use the External Portal RADIUS that we configured.

<figure><img src="https://2507662344-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FDBkKbWLZfasd8l3v8ndZ%2Fuploads%2Fgit-blob-be357abe2fa12c30f4822e0d2dd51b170719da20%2F05.jpg?alt=media" alt=""><figcaption></figcaption></figure>

* Security Profile : DEMO\_SUPERWIFI (select the name you created under the Security menu)


---
